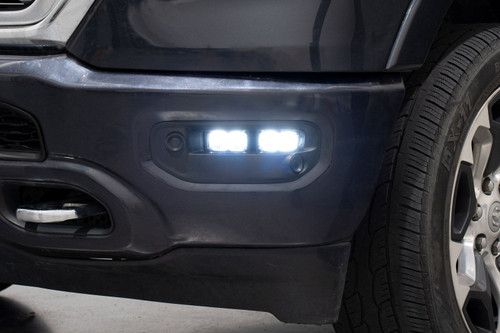

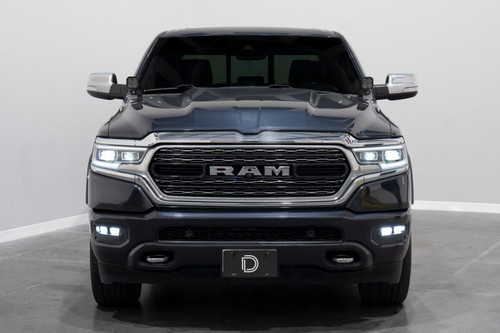

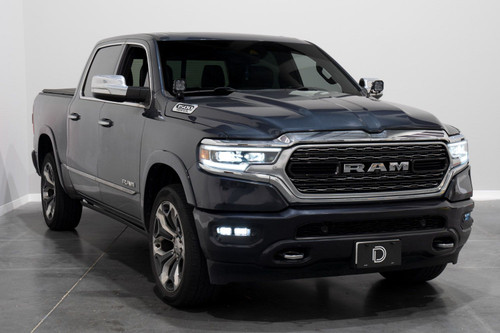

OVERVIEW: If you are looking to add an aggressive offroad appearance to your Ram 1500 while still having road-legal fog lights, look no further! The Stage Series Fog Pocket Kit for the 2019-2024 Ram 1500 from Diode Dynamics adds four road-legal SSC2 fog pods in place of your factory fog lights, for a significant increase in light output.
UNMATCHED LIGHT SPREAD: This kit includes four SSC2 LED Pods in the SAE-compliant fog beam pattern. The unique design of the fog pocket brackets allows you to aim the inside pods straight ahead, while the outer pods are slightly offset allowing for an even further spread of light.
SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your vehicle.
When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
WHITE OR YELLOW FOG: The SSC2 fog pods included with this kit are available in both cool white and selective yellow LED pod options. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
BACKLIGHT FUNCTIONALITY: Each pod in this kit includes a distinctive Amber backlight feature. This integrated backlight gives you an additional accent light, along with the main beam. The backlight on each SSC2 fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. The backlight is powered using the included H11-size adapter to tap your desired vehicle function.
PROVEN RELIABILITY: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
FEATURES:
INCLUDES:
SPECIFICATIONS:
NOTE: Specifications listed here are for each individual pod.
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| Fog White Sport | 5,000 cd | 50 lux | 871 lm | 1,130 lm | 6000K White |
| Fog Yellow Sport | 4,400 cd | 44 lux | 777 lm | 960 lm | 3000K Yellow |
