2005-2015 Toyota Tacoma | Diode Dynamics Stage Series Reverse Light Kit

$240.00
Year:
2005
Year:
2006
Year:
2007
Year:
2008
Year:
2009
Year:
2010
Year:
2011
Year:
2012
Year:
2013
Year:
2014
Year:
2015
  • Perfect Fitment

    Correct Part Always

  • In-House Experts

    We Know Lighting

  • Lowest Prices

    We Price Match

  • Fast Free Delivery

    $40+ Free Shipping

OVERVIEW: There's plenty of ways to add light behind your Tacoma, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and plug-and-play wiring harness, for trouble-free installation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time, or activate it automatically with your reverse lights, for a truly integrated solution.

PLUG AND PLAY: Thanks to custom-molded OEM connectors, this kit is completely plug-and-play. The included adapter harness plugs right into your factory tail lights for easy installation and operation. No cutting, drilling, or additional wiring needed! The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

FOCUSED: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

FUNCTIONAL PATTERNS: All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

FLOOD: pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

SPORT OR PRO: Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

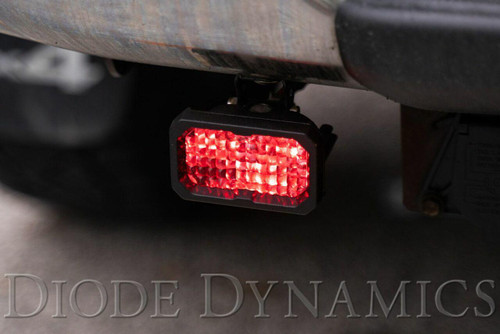

BACKLIGHT FUNCTIONALITY: The Stage Series LED pods included with this kit feature a distinctive backlight feature in a vibrant red color which can be used as additional accent lights while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

SIMPLE CONNECTIONS: The included wiring harness allows you to connect this kit to your vehicle's wiring for simple, everyday operation. The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

PROVEN RELIABILITY: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

FEATURES:

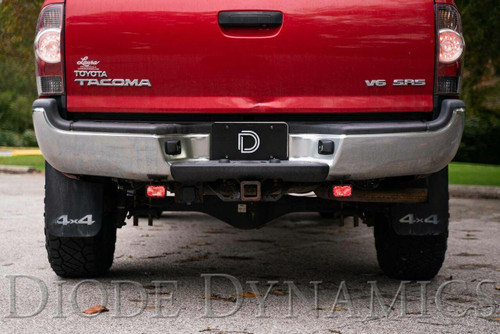

  • Allows you to Mount SSC1 or SSC2 Pods Underneath the 2005-2015 Toyota Tacoma Rear Bumper
  • Plug-and-Play Wiring Harness, with OEM Connectors and Toggle Switch Override

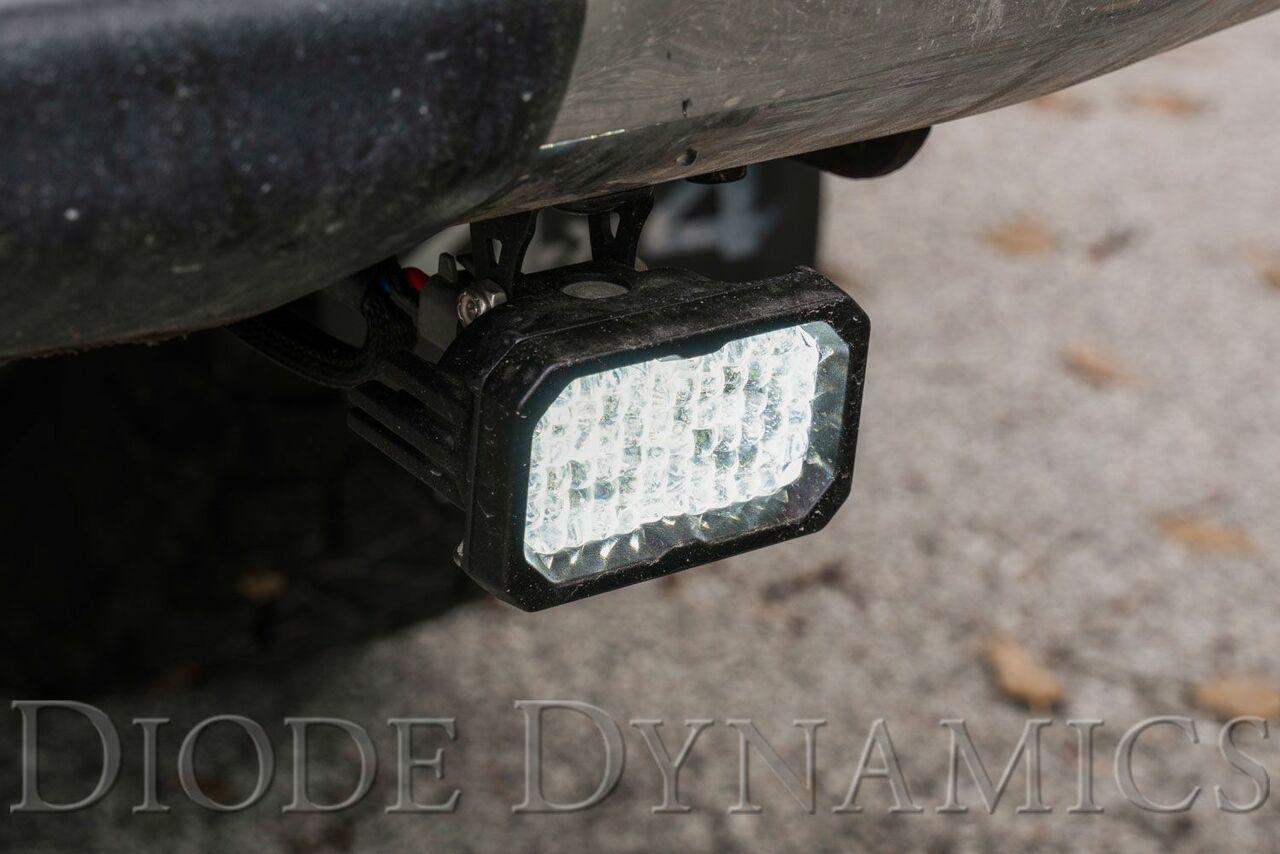

  • Provides High-Power Reverse Light, and Red Accent Light
  • Designed and Assembled in USA
  • 8 Year Warranty

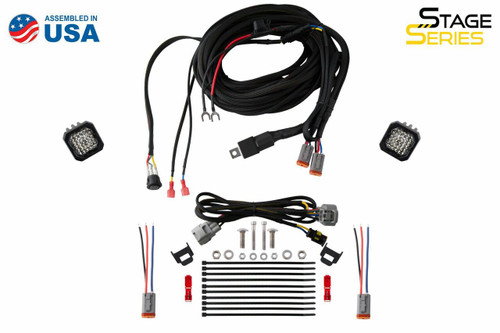

INCLUDES:

  • Two (2) SSC1 or SSC2 Flush Mount LED Pods
  • One (1) Universal Reverse Light Wiring Harness
  • One (1) Adapter Harness for 2005-2015 Toyota Tacoma
  • Two (2) Mounting BRackets
  • Ten (10) Zip Ties
  • Two (2) T-Taps
  • Mounting Hardware

SPECIFICATIONS:

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
 SSC1 Sport  400 cd  4 lux  1,030 lm  1,449 lm  6000K White
 SSC1 Pro  925 cd  9 lux  2,300 lm  2,375 lm  6000K White
 SSC2 Sport  375 cd  4 lux  871 lm  1,130 lm  6000K White
 SSC2 Pro  700 cd  7 lux  1,988 lm  2,898 lm  6000K White
