2015-2021 Subaru WRX / STI | Diode Dynamics Stage Series LED Ditch Light Kit

$90.00
Year:
2015
Year:
2016
Year:
2017
Year:
2018
Year:
2019
Year:
2020
Year:
2021
  • Perfect Fitment

    Correct Part Always

  • In-House Experts

    We Know Lighting

  • Lowest Prices

    We Price Match

  • Fast Free Delivery

    $40+ Free Shipping

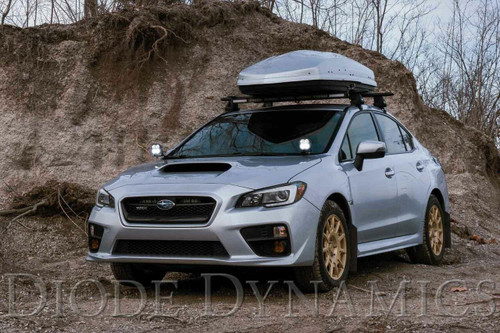

PERFECT FITMENT: The Stage Series LED Ditch Light Kit for the 2015-2021 Subaru WRX/STi allows you to easily mount two SS3 or SSC2 Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.

BUILT TO LAST: The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel, these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving.

FOCUSED: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 and SSC2 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 and SSC2 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series Pod is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

FUNCTIONAL OUTPUT: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

COMBO: combines both the Driving and Flood optics. The SS3 shines light downrange in a focused, rectangular 65x25 degree pattern, while the SSC2 shines light downrange in a 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

WHITE OR YELLOW: All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 or SSC2 Pods.

SPORT OR PRO: Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.

BACKLIGHT FUNCTIONALITY: Both the SS3 and SSC2 pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

PROVEN RELIABILITY: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

FEATURES:

  • Bolt-on fitment for 2015-2021 Subaru WRX / STI
  • Allows you to mount two Stage Series LED Pods above the Iood
  • Utilizes existing Mounting Points and Hardware for a Simple Installation
  • Thick-gauge Stainless Steel Construction
  • Low-Profile Design
  • 8 Year Warranty in Case of Failure

INCLUDES:

  • Two (2) SS3 or SSC2 Standard LED Pods
  • Two (2) Ditch Light Brackets
  • Two (2) SS3 or SSC2 Mounting Brackets
  • One (1) Heavy Duty Dual Output Wiring Harness
  • Mounting Hardware
  • Mounting Guide

SPECIFICATIONS:

SS3 LED PODS
LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
 Combo White Sport  31,500 cd  315 lux  1,520 lm  2,262 lm  6000K White
 Combo White Pro  35,100 cd  351 lux  3,000 lm  5,796 lm  6000K White
 Combo Yellow Sport  28,100 cd  281 lux  1,300 lm  1,930 lm  3000K Yellow
 Combo Yellow Pro  33,406 cd  334 lux  2,700 lm  5,220 lm  3000K Yellow

SSC2 LED PODS
LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
 Combo White Sport  16,264 cd  163 lux  871 lm  1,130 lm  6000K White
 Combo White Pro  27,179 cd  272 lux  1,988 lm  2,898 lm  6000K White
 Combo Yellow Sport  13,534 cd  135 lux  777 lm  960 lm  3000K Yellow
 Combo Yellow Pro  23,388 cd  234 lux  1,858 lm  2,610 lm  3000K Yellow
