2022-2024 Ford Maverick | Diode Dynamics Elite Series LED Fog Lights


Expected release date is Mar 1st 2024

Have a Question?

  • Perfect Fitment

    Correct Part Always

  • In-House Experts

    We Know Lighting

  • Lowest Prices

    We Price Match

  • Fast Free Delivery

    $40+ Free Shipping

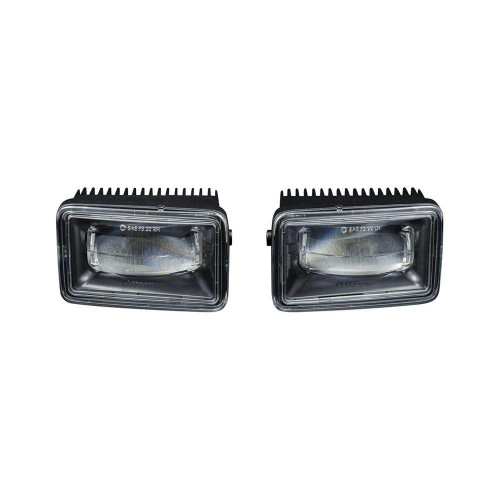

While the Ford Maverick doesn’t come with a factory fog light option, there is still a need for light directly in front of the vehicle to increase your visibility in foggy, dusty, snowy, or rainy conditions. Headlights simply weren’t designed to provide this kind of visibility, so that’s where we come in. Introducing our new add-on Elite Series Fog Lamp Kit for the 2022-2024 Ford Maverick! This kit allows you to mount two SAE-compliant fog lamps in the factory bumper, while maintaining an OEM appearance thanks to the custom-designed bezel.

OEM+ APPEARANCE: Our team of in-house engineers designed the bezel included in this fog light kit to match the factory bumper, giving you a seamless appearance between plastics. While this kit does require cutting the bumper, it’s simple to do and is absolutely worth it.

FACTORY-LIKE OPERATION: Unlike other basic harnesses on the market, the Add-On Fog Harness included in this kit allows the fog lights to operate automatically, just like you'd expect from the factory. By using an activation and deactivation wire, along with a toggle switch, the harness will turn your fog lights on automatically any time the headlights are turned on, and the switch is in the on position. This is much more convenient than manually flipping a switch on every time you want to use them!

OUTPUT THAT OUTPERFORMS: The Elite Series Fog Lamp is built around a highly-engineered single-piece PMMA lens. This optic was carefully designed using advanced optical simulation software to produce an asymmetric light pattern that is wider than any other aftermarket fog lamp on the market, with a 100-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

WHITE OR YELLOW: All Elite Series Fog Lamps are available in a cool white or selective yellow output color.

The white is a 6000K color temperature, which is a true cool white output. This will perfectly match other LEDs on your vehicle, such as DRLs or running lights. The white option also offers a premium BMW-style color band at the very top of the beam pattern.

The selective yellow option is 3000K in color temperature, which is great for high contrast in inclement weather, or in providing a distinctive look on the road. The yellow lamp consists of a yellow multi-die LED emitter paired with a yellow-tinted lens, to provide unmatched output and optical efficiency, even with the intense yellow output.

BACKLIT FUNCTIONALITY: All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs, intended to match other position, sidemarker, or corner lights on your vehicle. This feature can be wired to any constant 12-volt source for your desired vehicle function, using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.

BOLT-ON FITMENT: Elite Series Fog Lamps can be installed on most vehicles in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place, using sturdy glass-fiber-reinforced brackets. With built-in adjustment, the lamps can be aimed after installation. To wire them up, a pair of waterproof plug-and-play adapters are included to connect the lights to your factory bulb sockets.

ASSEMBLED WITH QUALITY IN THE USA: Elite Series Fog Lamps are assembled in the USA using OEM-grade materials, including a precision aluminum casting, UV-coated outer lens, copper-core circuit board, and multi-die automotive emitters. After being assembled by Diode Dynamics in St. Louis, Missouri, they are robotically sealed with urethane epoxy for long-lasting protection against moisture, and packaged in form-fit foam for safe transportation. No expense has been spared, from materials to assembly, right here in America.

PROVEN RELIABILATY: Backed for 8 Years. Like our popular Stage Series lineup, Elite Series LED lamps have been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components on your vehicle. With integrated moisture-proof vents, the lamps can “breath” with changes in temperature, maintaining a strong seal over time. And with built-in circuit protection for voltage spikes and reverse polarity, these lights will keep working for years. They are backed by an industry-leading 8-year limited warranty.

NOTE: This kit is not compatible with the Tremor or FX4 trim levels. It is only compatible with trucks without tow hooks.


  • High-Performance OEM-Grade Replacement
  • Custom-Engineered Optic provides Extremely Wide, Intense Light Output
  • Distinctive Integrated Amber Backlight
  • Road-Legal Fog Light (SAE F3 compliant)
  • Plug and Play Main Beam, no Modification Needed
  • Engineered and Assembled in USA
  • 8 Year Warranty


  • Two (2) Elite Series Type F2 Fog Lights
  • Two (2) Vehicle Specific Fog Light Bezels
  • Two (2) Support Rings
  • One (1) Add-On Fog Light Wiring Harness
  • One (1) Speaker Relocation Bracket
  • Eight (8) Zip Ties
  • Four (4) T-Taps
  • Mounting Hardware
