With its fanless design and white or selective yellow color options, the SLF LED has been a popular choice for anyone looking for an upgrade, especially in fog light applications. We're excited to introduce its successor: the 5202 / 2504 SL2 LED! The SL2 features a number of upgrades, including a more compact design, internal driver, and improved reliability. The all-new SL2 LED bulb is a direct plug-and-play replacement, providing a significant upgrade in performance.

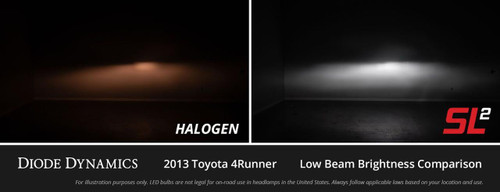

OPTIMIZED OPTICAL FOCUS: Don't be fooled by high lumen numbers. Your vehicle's fog lights are designed to focus light. If the light source in the housing is out of focus, it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road where you need it, you'll just have more glare. To fix this, the SL2 LED bulb was engineered to focus light from the same location as the original bulb, preserving the focus and hotspot, with no added glare. It produces a functional beam pattern, with a stronger hotspot for added distance and visibility.

FANLESS DESIGN: You may have seen bulbs that use large straps for cooling, or big fans that just make noise. Instead, the SL2 was designed as a compact, fanless solution. But that doesn't mean it's low-power! At 14 watts, the bulb still provides plenty of output thanks to a copper-core circuit board and a thermally-optimized full-metal housing with integrated heatsink. The result is a highly-effective and reliable cooling system, keeping the bulb running at maximum potential without the need for a fan.

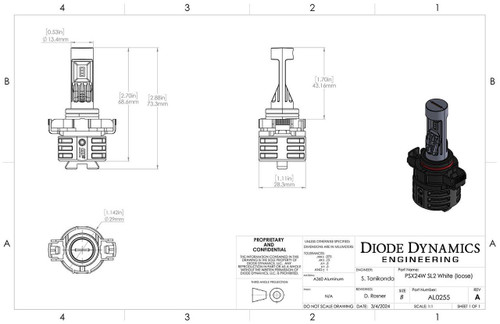

COMPACT SIZE: The SL2 LED bulb is compact in size, not much bigger than a traditional bulb. The integrated internal driver allows the bulbs to easily fit inside your housing without the need to tuck a driver away. Installation is easy - simply remove the original bulb, and the SL2 will fit in its place, and plug right in. Please see further information on Vehicle-Specific product listings, or contact us.

WHITE OR YELLOW: The SL2 is available in 6000K Cool White or Selective Yellow. The 6000K Cool White color temperature provides a more modern appearance and matches most OEM lighting, while the unique Selective Yellow color is great for high contrast, which some find beneficial in inclement weather. Both color options use multi-die automotive-grade LED emitters for superior performance.

RELIABILITY: Every part of the SL2 LED was designed for reliability, from the custom wiring, to the exclusive aluminum castings, to the integrated driver with built-in circuit protection. The SL2 was put through its paces in our environmental testing chambers - where the bulb successfully performed through dozens of thermal cycles, from -40 through 85 degrees Celsius (-40 to 185F). Whether you're in the Sahara or northern Canada, the SL2 will keep performing for years. It's even compatible up to 30V! We're so confident in the SL2's reliability, that it's backed by an industry-leading limited LIFETIME warranty.

OPTIONAL ACCESSORIES: Even though these bulbs are designed to be plug-and-play, some makes and models require additional accessories to complete the installation. Many vehicles do not need anything additional while others may need one or all of these accessories. You can try the LED bulbs without any of these accessories and add them later if needed.

ANTI-FLICKERS: If your vehicle has PWM (Pulse Width Modulation) or CanBus, you may experience flickering, shutting off, or errors on the dashboard once you install the LED bulbs. This is an easy fix, simply add our anti-flicker cancellers to prevent any issues caused by PWM or CanBus. These plug directly between the LED bulbs and your factory harness. If your headlamps have a dust cap, you will drop these inside of the housing before you install the bulbs.

BULB ADAPTERS: When you remove your stock halogen bulbs, if there is a metal or plastic adapter that locks the bulbs into place, you will most likely not be able to reuse it for the LED bulbs. However, we have a wide selection of aftermarket LED Bulb Adapters that will replace your stock model.

RUBBER DUST CAPS: If your factory housing dust cap will no longer fit your headlamp due to the rear section of the LED bulbs is too large, you will need to replace it with aftermarket LED Housing Dust Caps. You can measure the opening of your housing to select the exact size you need or select the universal model which can be trimmed down to the size you need.

Not sure if your vehicle needs accessories? The experts at Dynamic Appearance are here to help! Simply Email Us to confirm.


  • Multi-Die Automotive LED Chips
  • 3000K Golden Yellow or 6000K Cool White
  • 1400 Lumens Per Bulb, 2800 Lumens Total
  • Designed and Engineered in USA
  • Lifetime Warranty

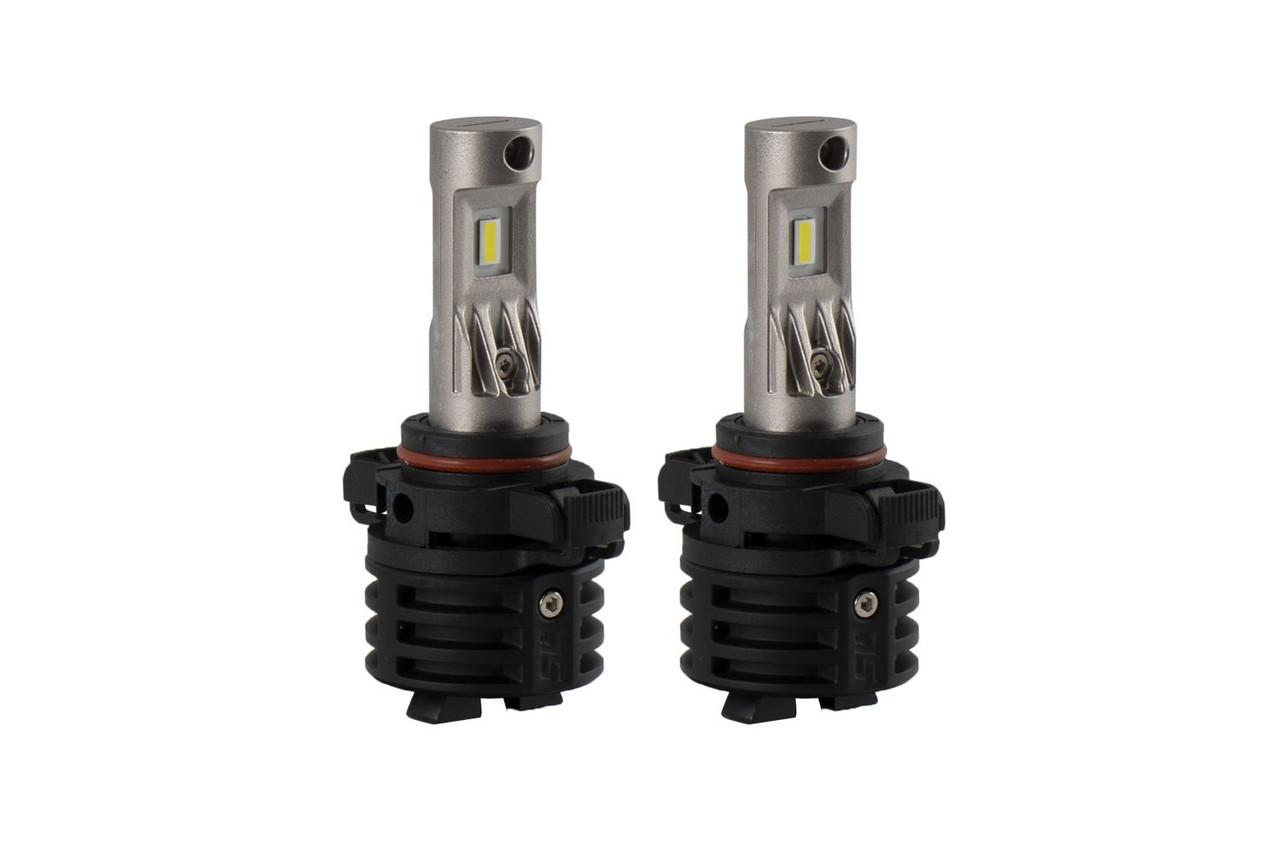

  • Two (2) 5202 / 2504 Diode Dynamics SL2 LED Bulbs

APPLICATION: LED lights are legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in ATV, snowmobile, and off-road racing use. This usage regulation is not unique to our products. All LED lights from all brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
