2007-2014 GMC Sierra 3500 | Diode Dynamics SS3 LED Fog Lights

$280.00
Year:
2007
Year:
2008
Year:
2009
Year:
2010
Year:
2011
Year:
2012
Year:
2013
Year:
2014
  • Perfect Fitment

    Correct Part Always

  • In-House Experts

    We Know Lighting

  • Lowest Prices

    We Price Match

  • Fast Free Delivery

    $40+ Free Shipping

OVERVIEW: Upgrade the fog lights on your 2007-2014 GMC Sierra 3500 with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included snap-on covers, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

PLUG AND PLAY: Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your 2007-2014 GMC Sierra 3500 in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

FOCUSED: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE COMPLIANT: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE DRIVING: is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE FOG: provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

BACKLIGHT FUNCTIONALITY: The Stage Series 3" LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function. NOTE: If you are upgrading your SS3 Pods to Backlit SS3 Pods, you will need to purchase a 2-pin to 4-pin wire tap kit in order to connect your existing 2-pin harness to your new backlit SS3 Pods.

WHITE OR YELLOW: All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

SPORT, PRO, OR MAX: Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

PROVEN RELIABILITY: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

FEATURES:

  • Fits 2007-2014 GMC Sierra 3500
  • SAE-Compliant Road-Legal Output
  • Includes Angled Bezel, for Factory-Style Appearance
  • Plug and Play, no Modification Needed
  • Advanced TIR Optics provide High Efficiency and Focus
  • Durable Powdercoated Aluminum Die-Cast
  • Engineered and Assembled in USA
  • 8 Year Warranty

INCLUDES:

  • Two (2) SS3 3" Standard LED Pods

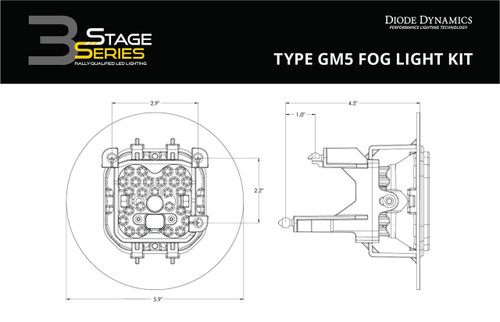

  • Two (2) Type GM5 Brackets
  • Two (2) 5202 DT Adapters
  • Mounting Hardware
  • Mounting Guide

SPECIFICATIONS:

NOTE: Specifications listed here are for each individual pod.

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
 Driving White Sport  54,700 cd  547 lux  1,520 lm  2,262 lm  6000K White
 Driving White Pro  66,500 cd  665 lux  3,000 lm  5,796 lm  6000K White
 Fog White Sport  10,600 cd  106 lux  1,520 lm  2,262 lm  6000K White
 Fog White Pro  11,900 cd  119 lux  3,000 lm  5,796 lm  6000K White
 Fog White Max  18,000 cd  180 lux  3,500 lm  7,920 lm  6000K White
 Fog Yellow Sport  9,050 cd  91 lux  1,300 lm  1,930 lm  3000K Yellow
 Fog Yellow Pro  10,900 cd  109 lux  2,700 lm  5,220 lm  3000K Yellow
 Fog Yellow Max  12,500 cd  125 lux  3,500 lm  7,920 lm  3000K Yellow
