2021-2024 Ford Bronco | Diode Dynamics Stage Series LED Ditch Light Kit

$260.00
Year:
2021
Year:
2022
Year:
2023
Year:
2024
  • Perfect Fitment

    Correct Part Always

  • In-House Experts

    We Know Lighting

  • Lowest Prices

    We Price Match

  • Fast Free Delivery

    $40+ Free Shipping

PERFECT FITMENT: The Stage Series SS3 Ditch Light Kit for the 2021 Ford Bronco allows you to easily mount two SS3 Pods to the factory Accessory Ready mounting points near the a-pillar location, above the hood. No cutting or drilling required! This kit will not interfere with the antenna, or raising and lowering the hood.

FOCUSED: Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

FUNCTIONAL PATTERNS: All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

COMBO: pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way!

WHITE OR YELLOW: All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

SPORT, PRO, or MAX: Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information.

BACKLIGHT FUNCTIONALITY: The SS3 LED pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

PROVEN RELIABILITY: Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

FEATURES:

  • Bolt-on fitment for 2021-2024 Ford Bronco
  • Allows you to Mount 2wo Stage Series LED Pods in the A-Pillar Location
  • Utilizes Factory Accessory Ready Mounting Points for a Simple Installation
  • Advanced TIR Optics provide High Efficiency and Focus
  • Engineered and Assembled in USA
  • 8 Year Warranty

INCLUDES:

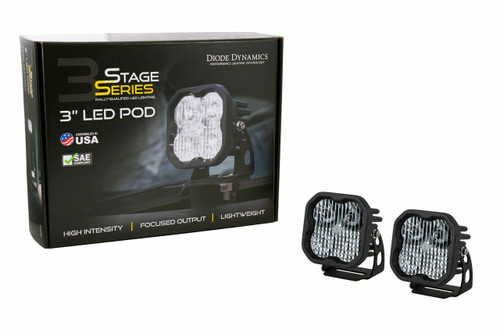

  • Two (2) SS3 Standard LED Pods
  • One (1) OEM Auxiliary Switch Harness
  • One (1) Light-duty Dual-Output Harness
  • Two (2) Mounting Brackets and Hardware

SPECIFICATIONS:

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
 Combo White Sport  31,500 cd  315 lux  1,520 lm  2,262 lm  6000K White
 Combo White Pro  35,100 cd  351 lux  3,000 lm  5,796 lm  6000K White
 Combo Yellow Sport  28,100 cd  281 lux  1,300 lm  1,930 lm  3000K Yellow
 Combo Yellow Pro  33,406 cd  334 lux  2,700 lm  5,220 lm  3000K Yellow
